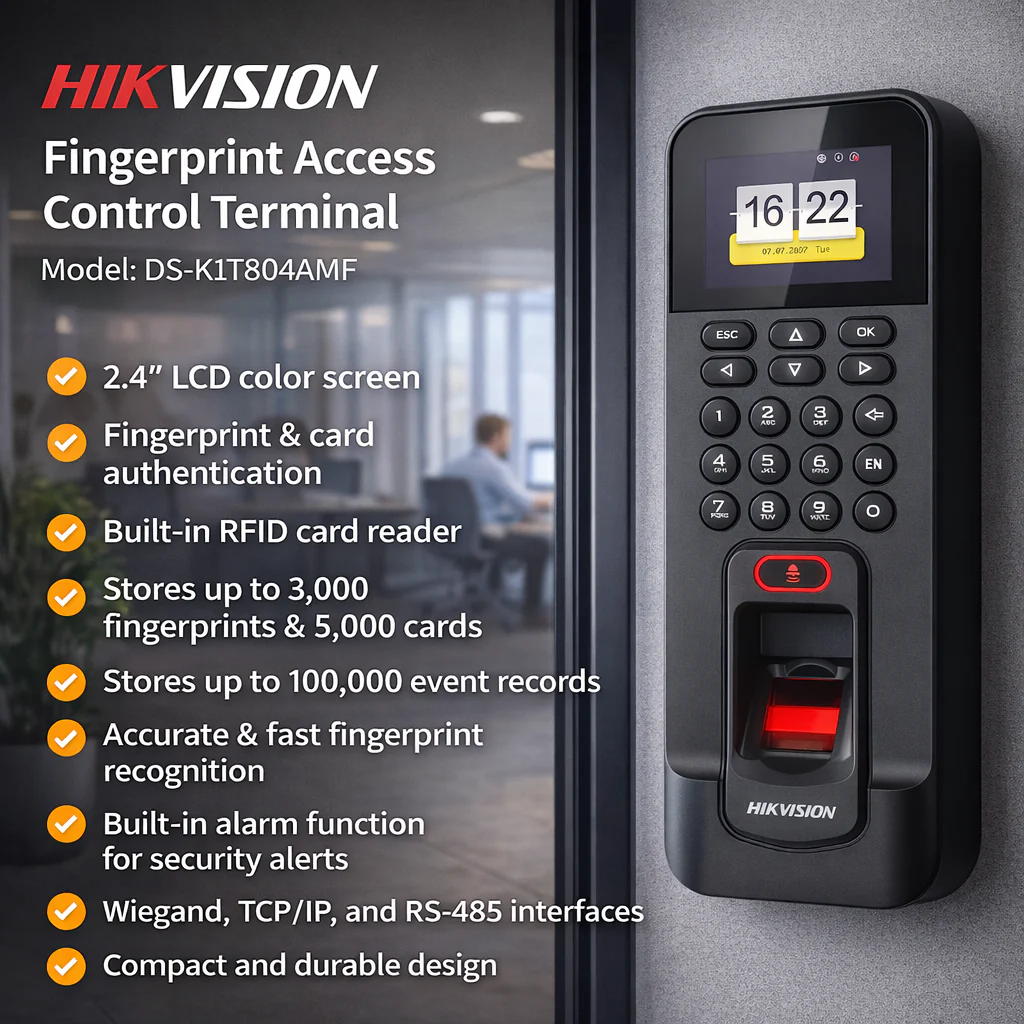

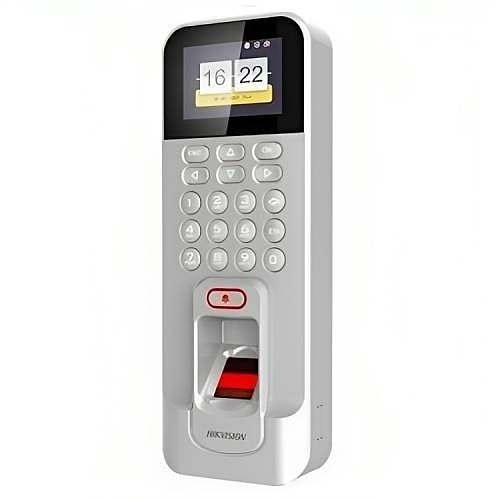

The Hikvision DS-K1T804MF is a standalone fingerprint access control terminal from the Hikvision Value Series. It is designed to manage both physical door access and employee time attendance using biometric, card, or password authentication Read more
The Hikvision DS-K1T804MF is a standalone fingerprint access control terminal from the Hikvision Value Series. It is designed to manage both physical door access and employee time attendance using biometric, card, or password authentication
| Specifications | Descriptions |
|---|---|
| Capacity: | Stores up to 3,000 fingerprints, 3,000 cards, and 100,000 event records. |
| Authentication: | Supports fingerprints (optical module), Mifare 1 cards (built-in reader), and keycodes. Verification typically takes less than 1 second. |
| Display: | Features a 2.4-inch LCD-TFT color screen with a resolution of 320 x 240 for status and management. |
| Connectivity: | Communication via TCP/IP, Wi-Fi, RS-485 (for a secure door control unit), and Wiegand interfaces. |
| Environmental: | IP42-rated with an operating temperature range of -10°C to 55°C. |
| Hardware Interfaces: | Includes inputs for an exit button, door sensor, and alarm, plus relay outputs for lock control |
